Create CSS CDN

When implementing video workloads for large-scale events and 24x7, CSS can be leveraged as a CDN to handle large viewer traffic. After configuring the StreamPackage, you can configure a CSS Playback Domain and associate it with the StreamPackage.

Let’s take a look at how to configure CSS as a CDN which is optimized for Live Streaming as follows.

CSS Playback Domain Configuration

  1. Click the Domain tab on the left tab of the CSS console. Then you can check the currently configured CSS domains.

  2. Click the Add Domain button located at the top of the main menu. Add domain Add domain

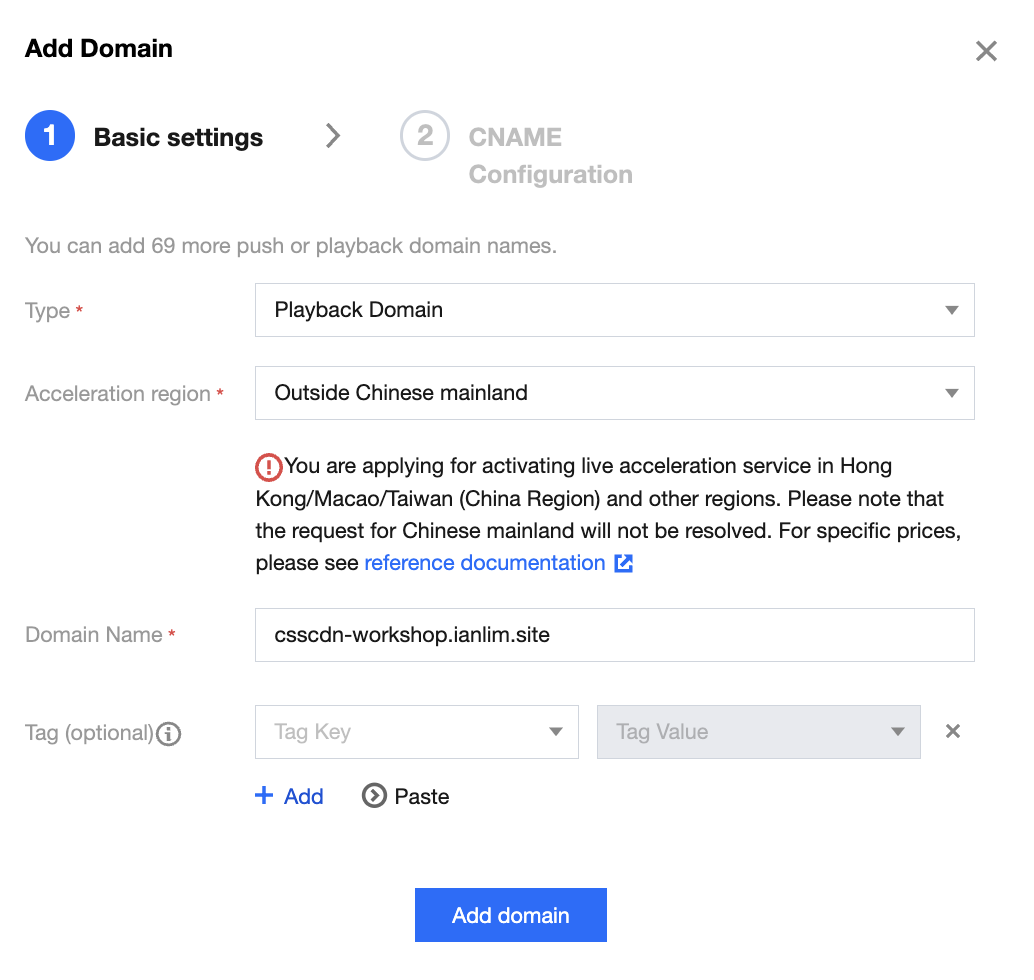

  3. When the Add Domain pop-up appears, change the Type to Playback Domain and enter the values as shown below. Once the input is complete, click the Add Domain button to move to the next step.

  • Type: Play domain
  • Acceleration region: Outside Chinese mainland
  • Domain Name: Domain name to use for playback Add play domain Add play domain

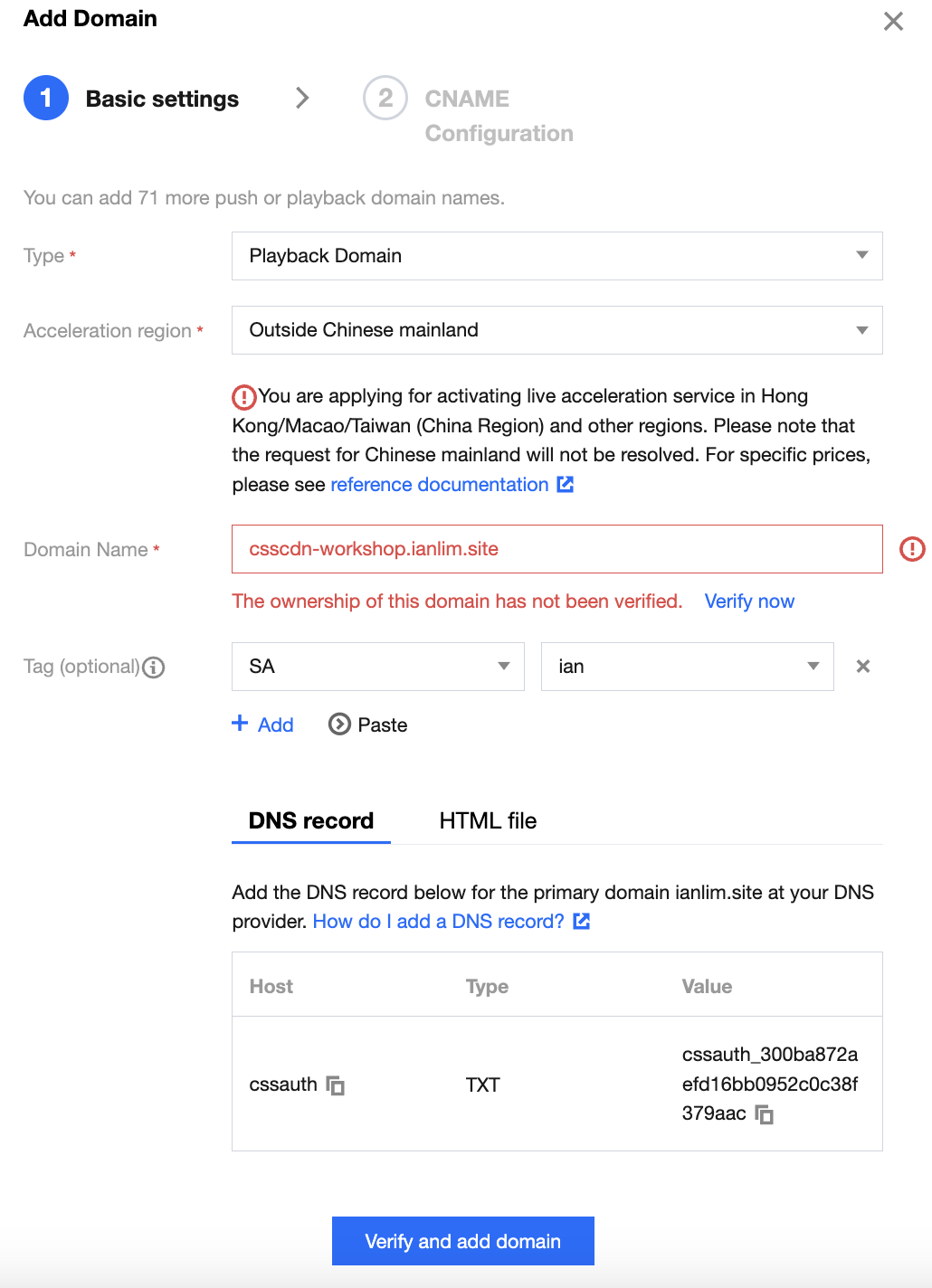

Note: If this is your first time registering a CSS Domain, a separate domain ownership verification process is required. After verifying ownership of the domain by adding a TXT record to the domain registration service, click Verify Now to complete domain ownership verification and move on to the next step. ALT_IMG ALT_IMG

  1. Refer to the CNAME Configuration menu and add the CNAME value for host in the DNS service.

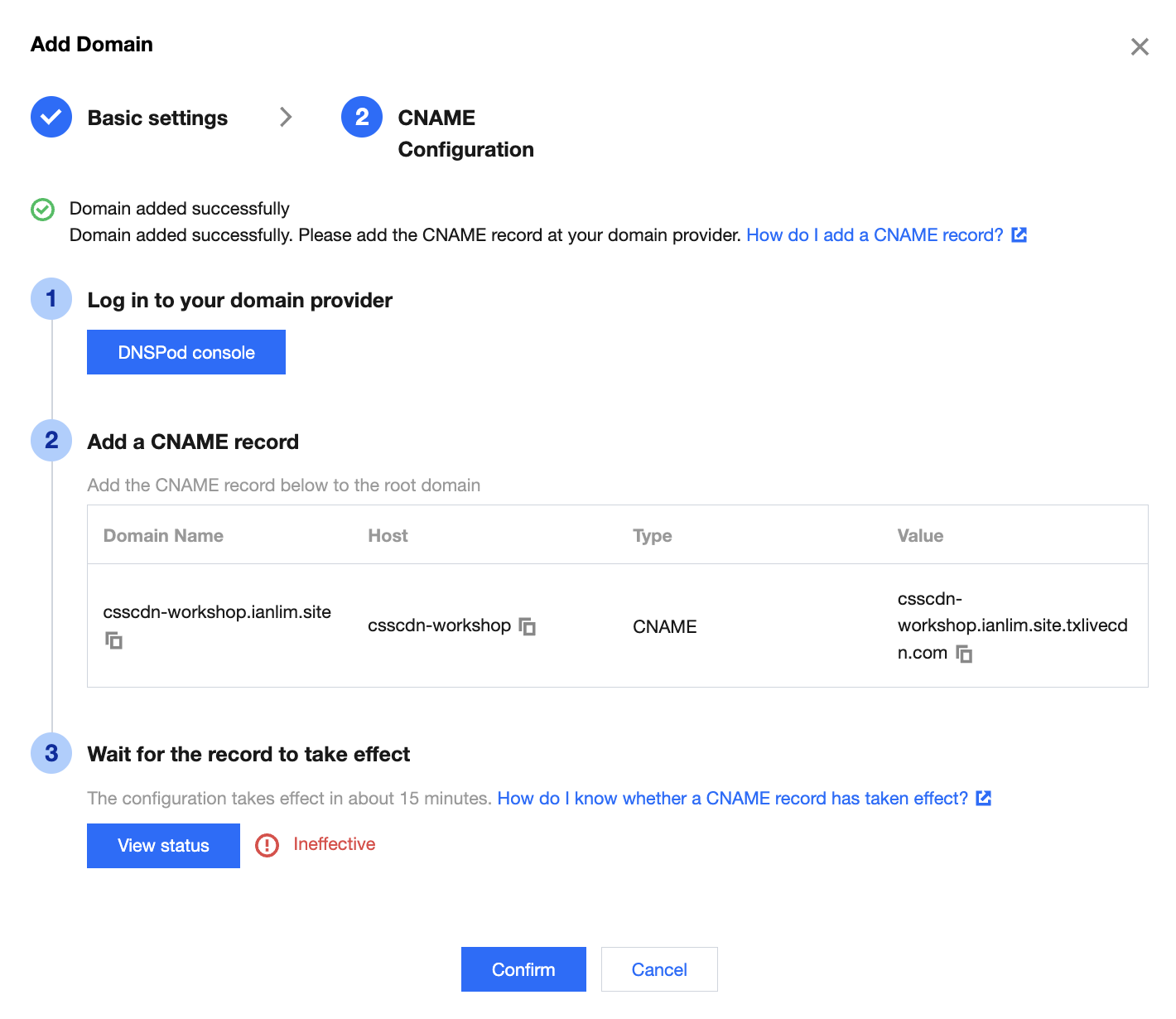

  • CNAME Configuration menu CNAME Configuration menu CNAME Configuration menu

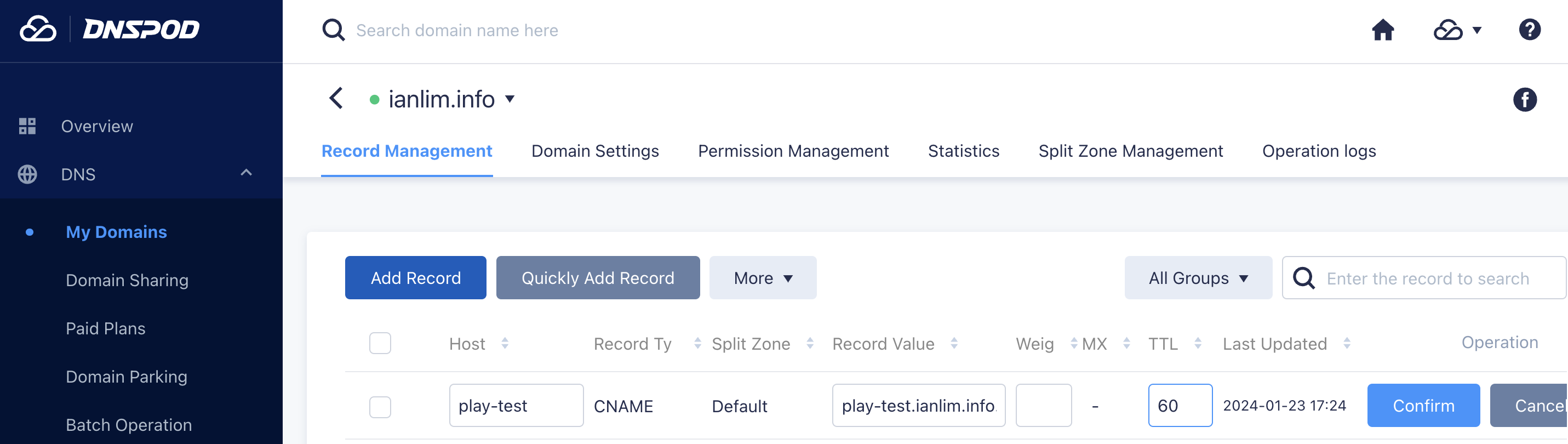

  • Add CNAME record to DNS (This is example screenshot so that the domain name can be differnt) Add domain Add domain
  • CNAME record verification Record verification Record verification
  1. Now configure the origin for CSS CDN. This configuration can be done from the StreamPackage console or CSS console.

Integration of CSS Playback Domain with StreamPackage

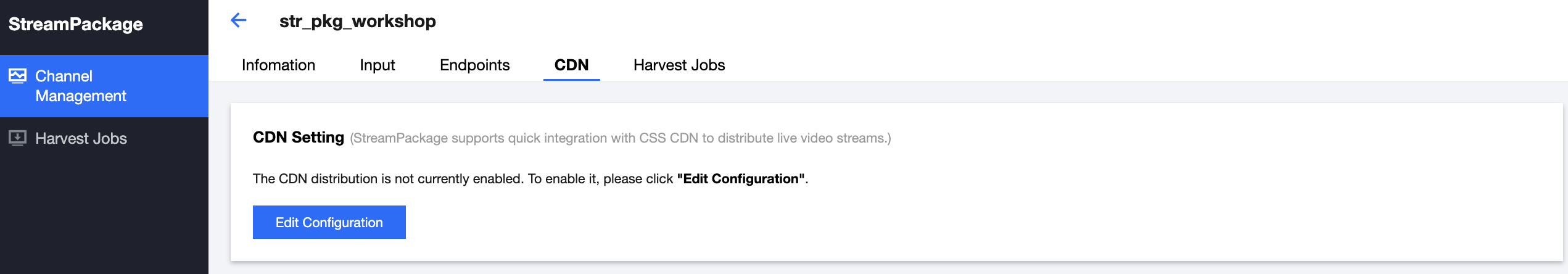

  1. Go to the StreamPackage console and navigate to the StreamPackage configuration configured in the previous section. Click the CDN tab in the top menu. ALT_IMG ALT_IMG

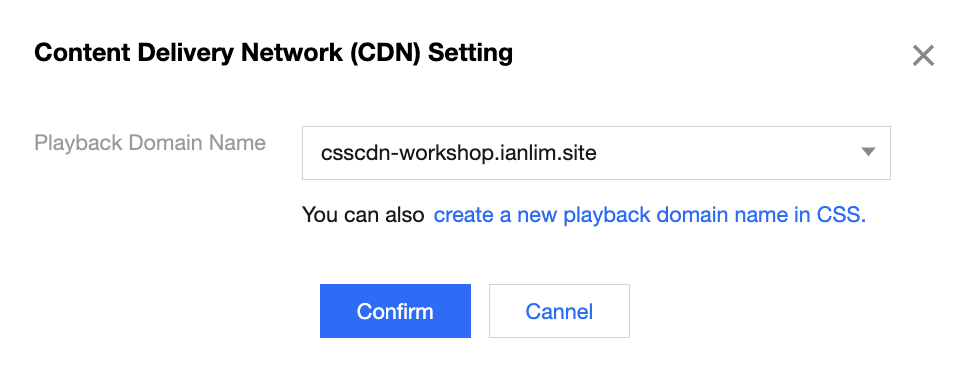

  2. Click the Edit Configuration button and select the CSS Playback domain you created. StreamPackage and CSS CDN can be natively integrated by default, so no additional integration procedures are required. ALT_IMG ALT_IMG

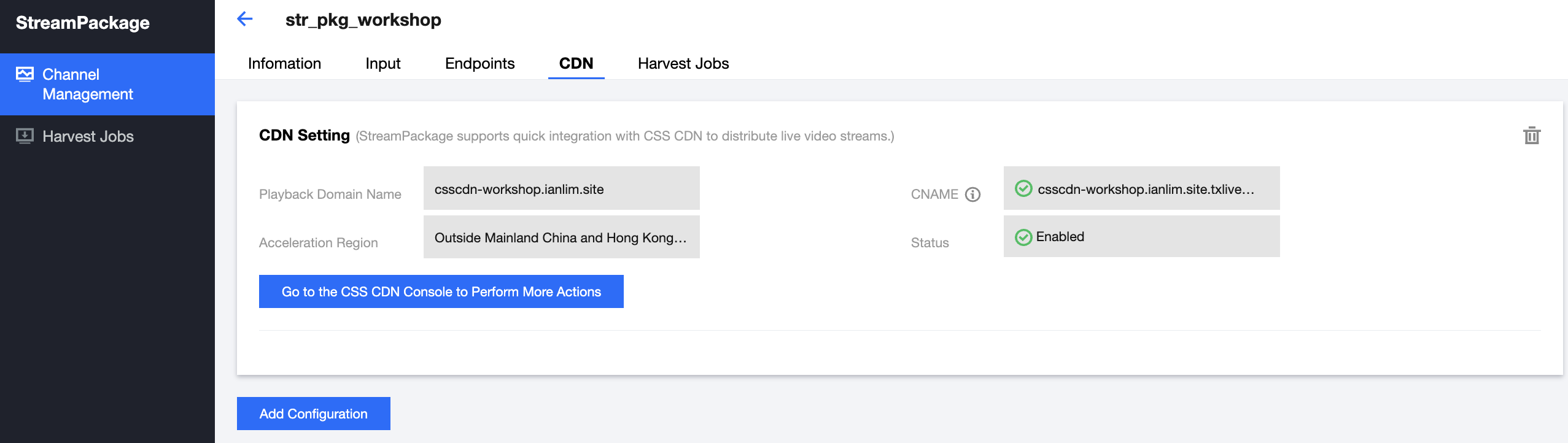

  3. In StreamPackage configuration, check that CSS Playback domain is configured as CDN and that CNAME and Status are all normal. ALT_IMG ALT_IMG

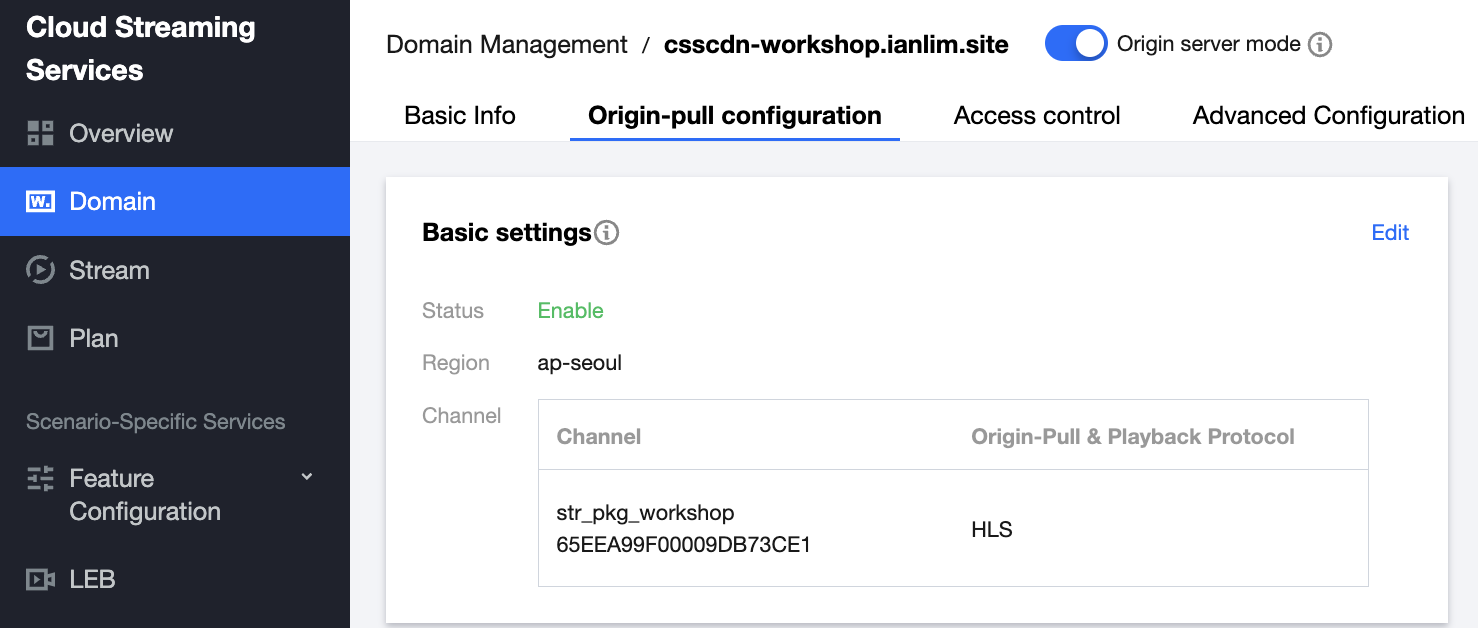

Note. If you go to CSS configuration, you can see that Origin server mode is activated, and in Origin-pull configuration, only StreamPackage Id is integrated.

When configuring CSS for Live Streaming CDN only or integrating with 3rd party live streaming service, Origin server mode must be enabled. ALT_IMG ALT_IMG
